Bohle logoSedimentor Water Filtration Systems

Get a return on your investment in as little as 4 months.

The Sedimentor by Bohle is a proactive and economical solution for environmentally conscious business owners looking to improve their manufacturing process and final glass products.

A closed water-recirculation system, it takes dirty water from your equipment and returns virtually clean water back through a simple 2-step process.

Why DeGorter and Bohle?

With models priced under $30,000, it’s ideal for glass fabricators of all sizes.  Integrating it into your process can deliver a return on investment in as little as 4 months.

Bohle Water FiltrationThe Sedimentor Systems

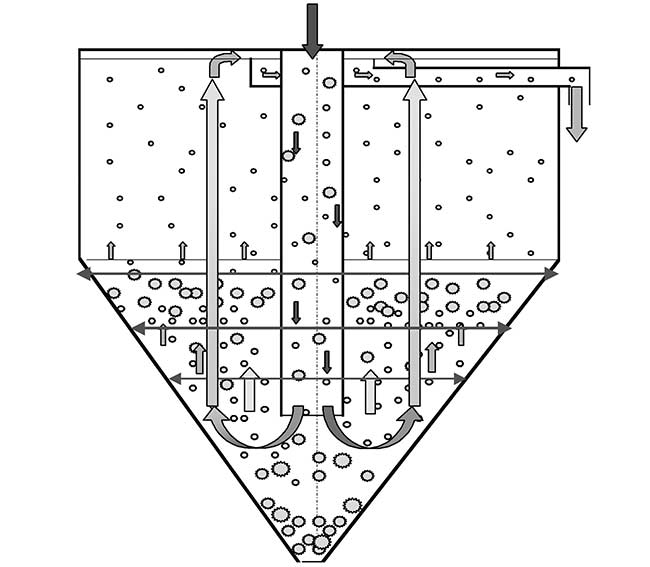

Bohle 2 step sedimentor process

Automated 2-step process

  • Its unique cone-shape design allows continuous settling of glass particles and contaminants during daily operation.
  • A powder flocculant is automatically added to further filter suspended glass particles, which are deposited into a waste removal bag and disposed of in an environmentally friendly way.

Low-cost dry flocculant

Bohle’s exclusive powder flocculant is biodegradable and 100% corrosive free whereas liquid flocculants contain salt that can accelerate machine breakdown.

The dispensing system has a unique screw-conveyor to prevent accidental overdosing, and the bypass control method keeps flocculant from entering during the grinding cycle.

Download PDF

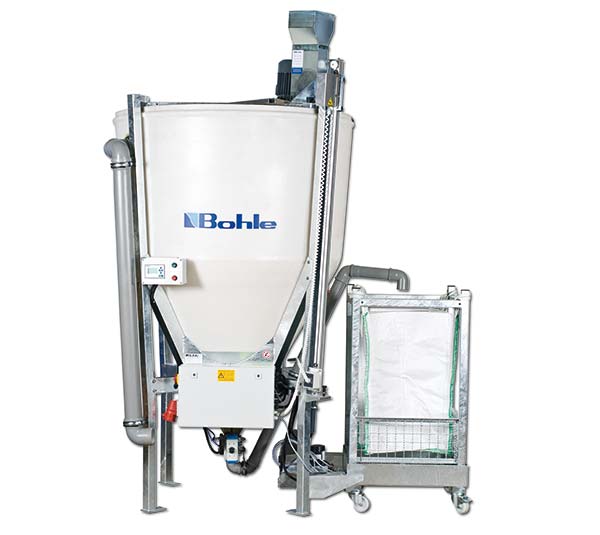

Bohle Sedimentor 2.4P system

Bohle Sedimentor 2.4P

The 2.4P cleans up to 15 lbs. of glass particles per hour from one or multiple grinding machines. With a compact design and small footprint, it should fit into your space with ease.

  • Water flow rate-approximately 74 gal/min
  • Filling quantity-555 gallons
  • Cleaning performance 15 lbs./hr. (approx.)
  • Filter bag-79 gallons
Download PDF

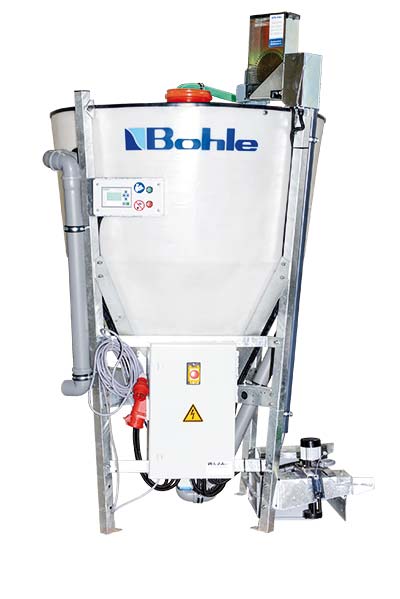

Bohle Sedimentor 1.0P system

Bohle Sedimentor 1.0P

Cleaning up to 7.9 lbs. of glass particles per hour from either one or multiple grinding machines, the compact design of the 1.0P allows it to be easily incorporated into your existing floor plan.

  • Water flow rate-approximately 39.5 gal/min
  • Filling quantity-264 gallons
  • Cleaning performance 7.9 lbs./hr. (approx.)
  • Filter bag-79 gallons
Download PDF

Ready for your Bohle estimate?

Simply fill out the quick form and you'll receive access to an instant download. *Please note all fields are required.

Which Bohle? (check all that apply)

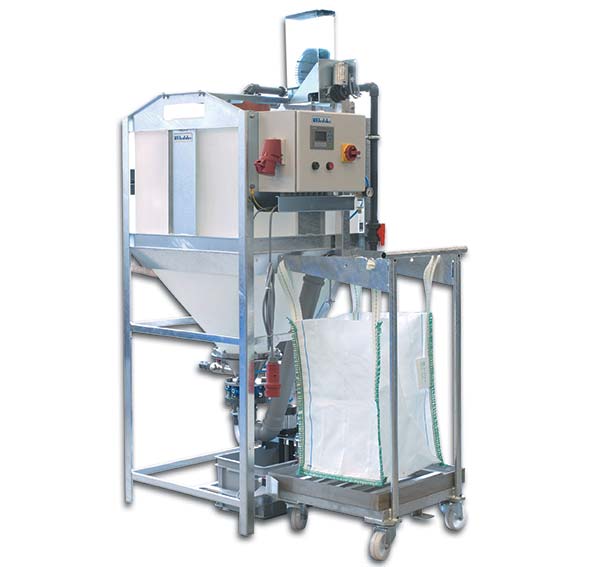

Bohle Sedimentor 0.3P system

Bohle Sedimentor 0.3P

Budget friendly solution with the same benefits as larger units, it cleans up to 2.2 lbs. of glass particles per hour from one or more machines and is ideal for those who don’t run their equipment 8+ hours/day.

  • Water flow rate-approximately 13 gal/min
  • Filling quantity-84.5 gallons
  • Cleaning performance 2.2 lbs./hr. (approx.)
  • Filter bag-18.5 gallons
Download PDF

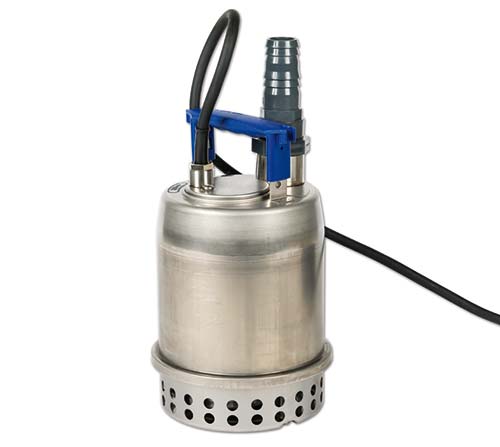

Bohle Accessories Submersible Pump

Accessories for The Sedimentor

These accessories are exclusive to Bohle systems.

  • Dry powder flocculant binds the fine suspended particles in coolant of glass processing machines to allow sedimentation.
  • Submersible pumps for return flow (models 160 & 840).
  • Connection set for two 160 or 840 submersible pumps.
  • Vetrocool coolant concentrate improves tool cooling for longer service live & higher feed rates for increased productivity.
  • Disposable filter bags for removal of glass sludge.
Download PDF

Support after the sale is a priority

DeGorter and Bohle both provide on-line and on-site support to keep your equipment performing its best.  Between DeGorter's North Carolina warehouse and Bohle's fully stocked warehouse in Germany, we can provide you with prompt delivery of any parts you may need.

Contact us to help select the table that best suits your needs. Call 704-282-2055 or fill out the form.
